Where Commitment To Quality Begins...





Evisceration Systems

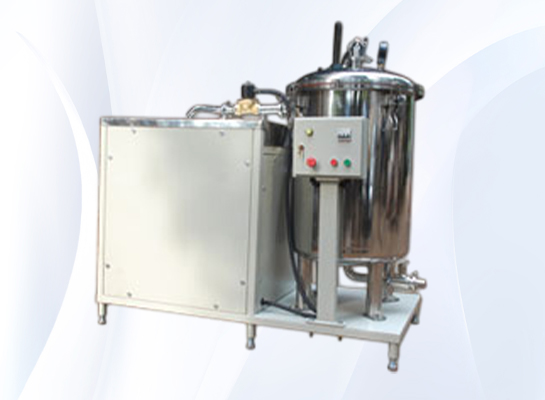

EVISCERATION SYSTEM

‘INDOVAC’ innovated and developed indigenously in conformity with the international standard product known as EVISCERATION SYSTEM for our esteemed customer abroad for their applications in recovery process.

PRINCIPLE of the system is to recover any substance from the main product for further process. The system is built in fabricated structure with vacuum pump, motor, automatic valves, pipings, switches and control panel. The capacity of the vessel for collection of the substances is appx.200 ltrs. The vessel is manufactured in food grade SS316.The liquid ring vacuum pump develops vacuum in the vessel. The suction nozzles are by passed through the storage vessel to its connecting point. The suction nozzle functions with vacuum sensor which is connected to foot operated switch on both sides of the unit for dual operation.

We provide hydro/ pneumatic circuit for automatic disposal of the substance to other subsequent processes as may be feasible and the needs of customers.

This system is used mainly in sea food process, pharma industries, chemical applications, distillation and recovery processes in any industries.
